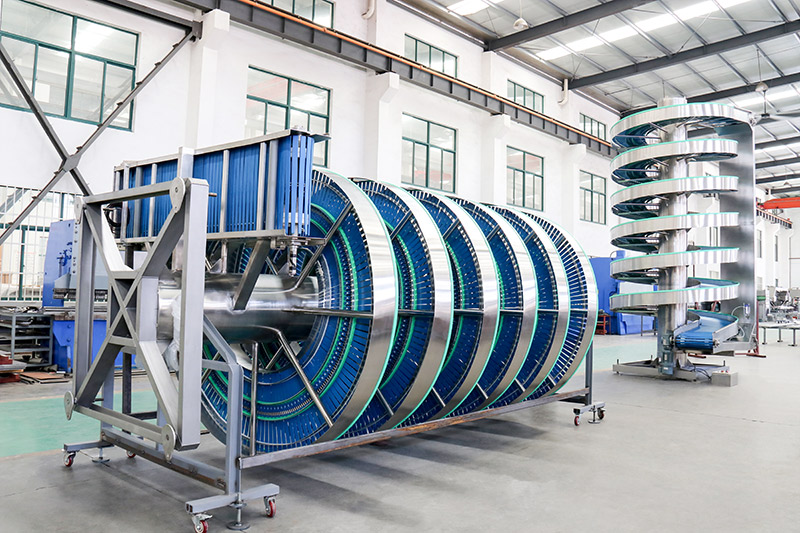

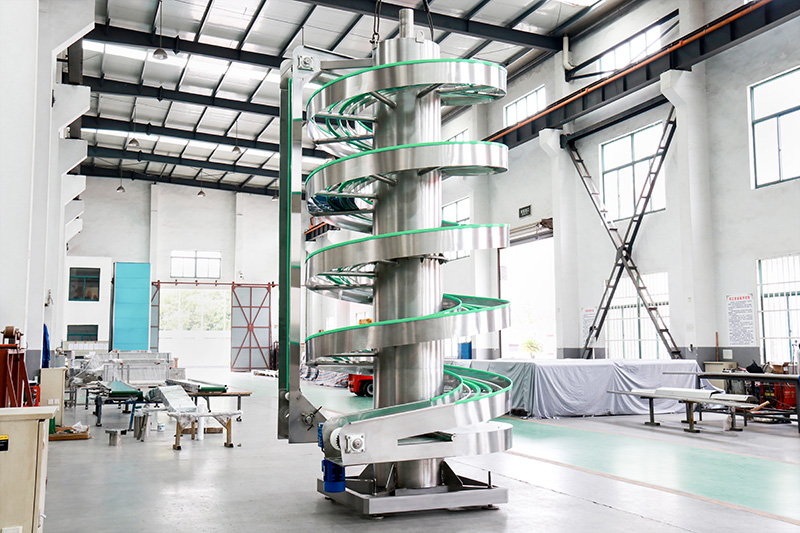

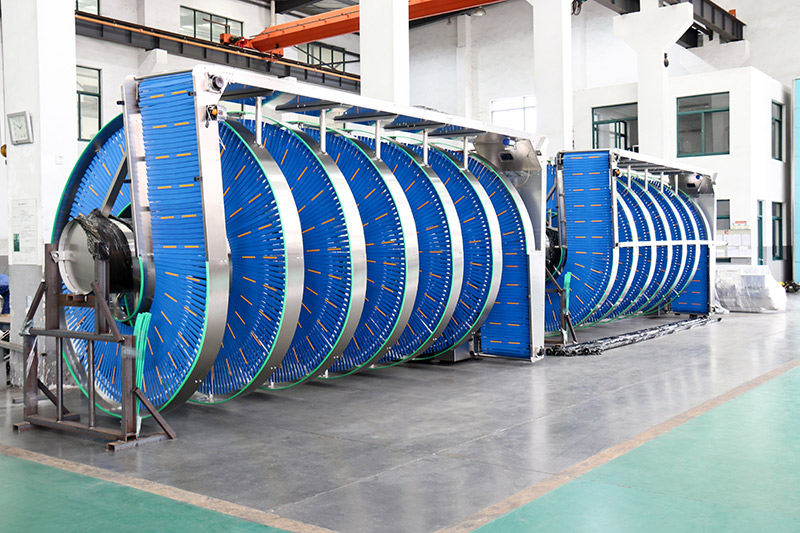

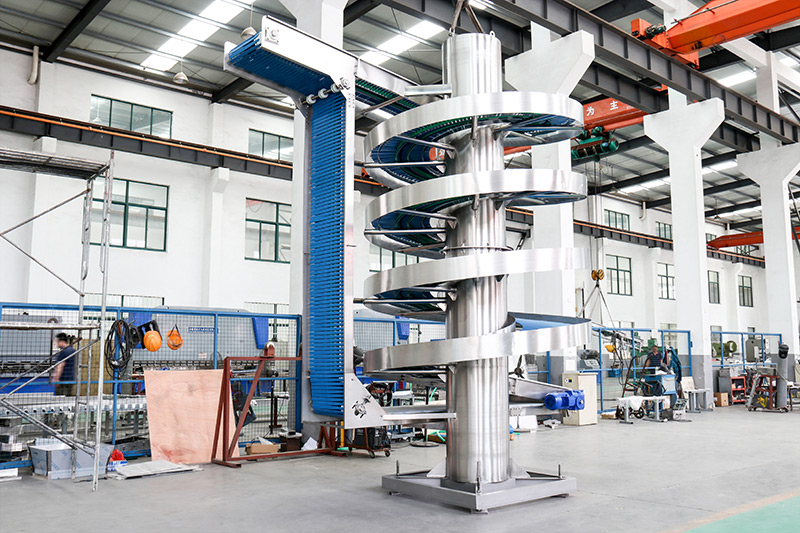

Spiral Chain Conveyor

High space utilization: Adopts a spiral climbing structure, which greatly saves floor space and enables multi-layer material transfer in confined areas.

Stable and reliable operation: Equipped with modular mesh belts and a double-sided track design, ensuring smooth operation, low noise, and minimal risk of material jams.

Hygienic and easy to clean: Main body is mostly made of 304 stainless steel, meeting food-grade hygiene standards with no dead corners for easy cleaning and disinfection.

Flexible and versatile functions: Can perform cooling, quick freezing, temporary storage, lifting, lowering, and other functions to adapt to different production processes.

Spiral frame: Made of welded stainless steel square tubes, providing support and guidance for the conveying medium.

Conveying mesh belt: Made of food-grade material, resistant to high and low temperatures, and customizable according to material characteristics.

Drive system: Motor + reducer combination provides stable power and supports variable frequency speed control.

Inlet and outlet ports: Direction can be flexibly adjusted for seamless connection with upstream and downstream processes.
